Function: Auto Trimmer, Auto reverse, Auto foot lifter, electronic clip, electronic thread loose,pattern sewing， Micro-stitch reinforcement, up and down needle position, fixed length stitching, Adjustable LED light, Half stitch,Speak function, USB interface.
Usage: widely used for sewing thin, medium and thick fabrics, shirts, suits, down, jackets, jeans, etc.

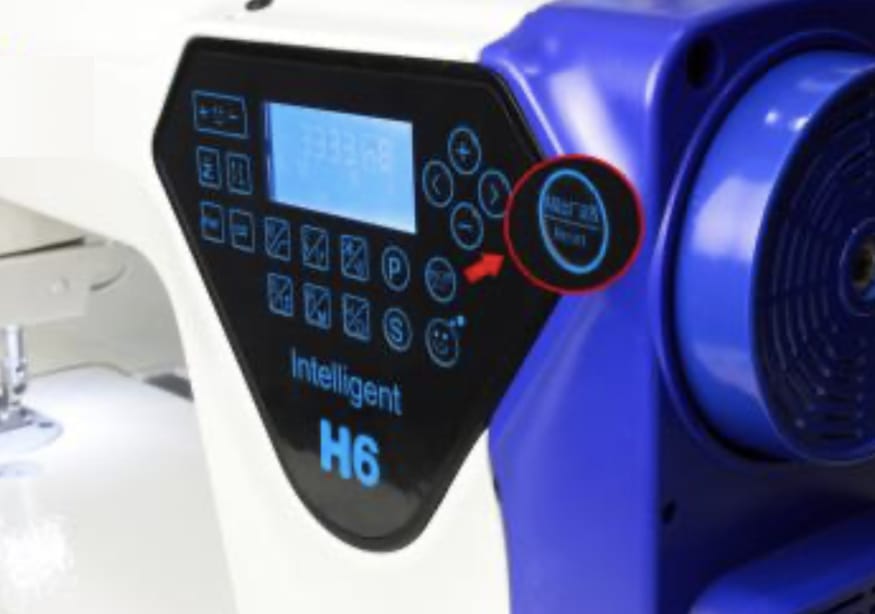

Electronic needle distance adjustment is used to abandon the traditional needle distance dial adjustment method, and stepper motor is used to realize the digital visual operation of the screen, with the minimum accuracy up to 0.1mm, which is more accurate, intuitive and convenient.
Ensure stable feeding needle spacing, and achieve perfect coincidence of needle stitches regardless of the size of needle spacing in reinforcing stitch.
Micro-stitch distance knot, no reinforcement seam can be used to ensure the two ends of the stitch "do not loose"
The stitch adjustment is controlled by the stepper motor, soft input with nine kinds of pattern stitch. You can program more patterns by yourself.

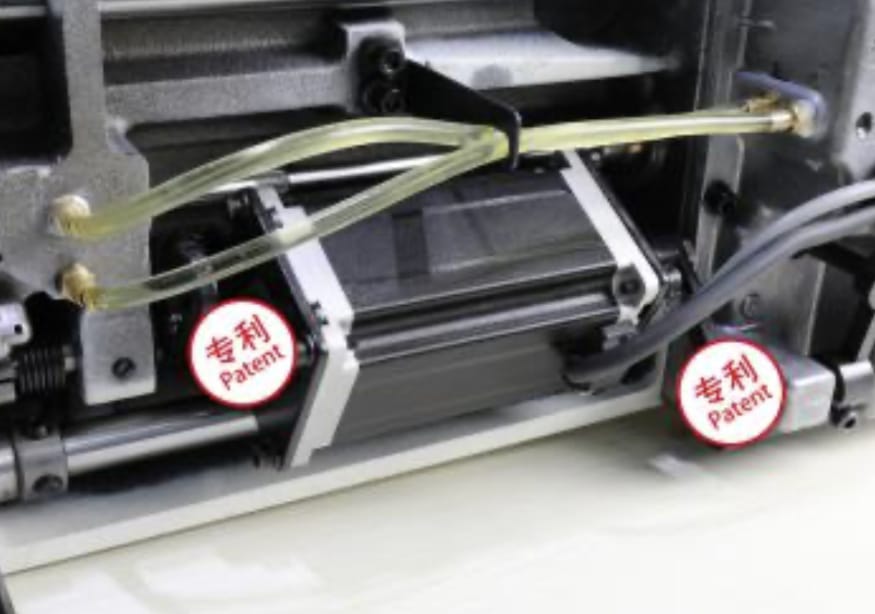

Stepping motor two-way drive technology(proprietary technology),one motor completes the trimmer and lifting foot action,make the trimmer more accurate,can be appropriate to adjust the pressure foot height,compared with the electromagnet sound lower than 21 db,and maintain the pressure foot longer.
The reinforcement is ultra-quiet, canceling the relevant mechanical devices, the sound of reinforcement joints is lighter, greatly reducing the degree of artificial fatigue.
Canceling the relevant mechanical devices, the sound of reinforcement joints is lighter, greatly reducing the degree of artificial fatigue.
One-key anti-nest, no thread breaking,start with micro stitch needle reinforcement mode , so that the nest significantly less, to achieve sewing quality without manual treatment.
Double knife setting, shorter cutting end, the length of thread end left on the cloth after cutting is less than 3mm,the face line is less than 3CM. greatly reducing the bird's nest, and more beautiful stitching.
Free set one button reset factory parameters, to meet the requirements of various sewing processes, no worry about the wrong operation.

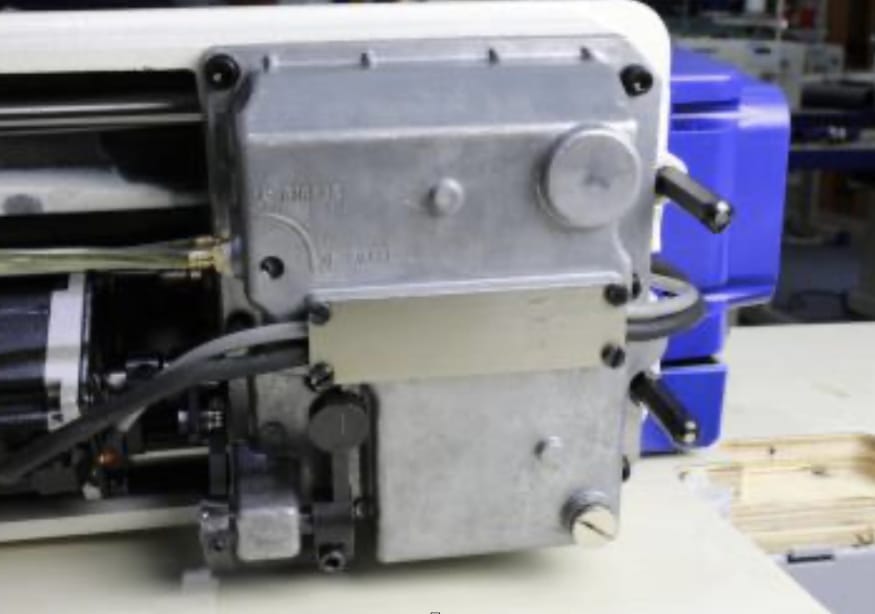

Realized the clean sewing,sealed the oil box structure, and avoided the sewing pollution caused by oil stains.
| TECH SPECS | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Needle Size | Usage | Gauge Set | Press foot | HOOK | Stitch length control | Foot lifter | Trimmer | Speed | Power | Voltage | frequency | G.W/N.W | Meas. |
| H6-5S2 | DB*1 11--18# | Thin,Medium,Thick | 5 | 5.5~13 | M Horizontal | Stepping motor | Maganet | Maganet | 5000 | 550 | 220V | 50/60 | 45/38 | 650*250*540 |
