H6-4S1-C

High speed Direct drive
lockstitch machine

(Less bird nest)

Function: Auto Trimmer, Auto reverse, electronic clip, Auto foot lifter, up and down needle position, fixed length stitching, Adjustable LED light, Half stitch,Speak function, USB interface
Usage: widely used for sewing thin, medium and thick fabrics,mesh, shirts, suits, down, jackets, jeans, etc.
Electronic needle distance adjustment is used to abandon the traditional needle distance dial adjustment method, and stepper motor is used to realize the digital visual operation of the screen, with the minimum accuracy up to 0.1mm, which is more accurate, intuitive and convenient.

Reinforcing stitch consistent

Ensure stable feeding needle spacing, and achieve perfect coincidence of needle stitches regardless of the size of needle spacing in reinforcing stitch.

Micro-stitch distance knot

Micro-stitch distance knot, no reinforcement seam can be used to ensure the two ends of the stitch "do not loose"

Pattern Sewing

The stitch adjustment is controlled by the stepper motor, soft input with nine kinds of pattern stitch. You can program more patterns by yourself.

Micro Stitch Needle Reinforcement Mode

One key anti-nest, no thread breaking,start with micro stitch needle reinforcement mode , , so that the nest significantly less, to achieve sewing quality without manual treatment.

Reinforcement super-quiet lift

The reinforcement is ultra-quiet, canceling the relevant mechanical devices, the sound of reinforcement joints is lighter, greatly reducing the degree of artificial fatigue.

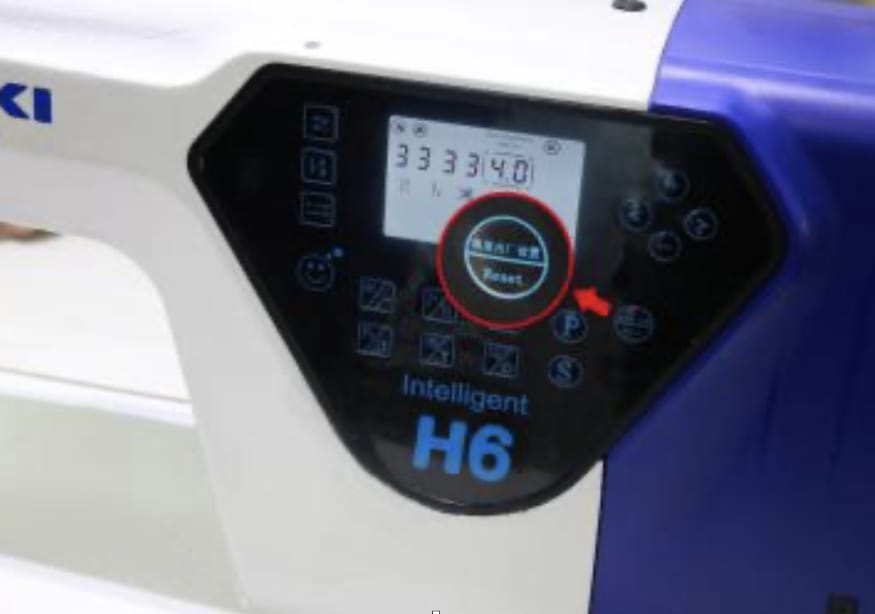

One key reset factory parameters

Free set one button reset factory parameters, to meet the requirements of various sewing processes, no worry about the wrong operation.

Unique pedal detection function

Through simple parameter operation, the pedal after deviation can be automatically calibrated parameters, repair the pedal.

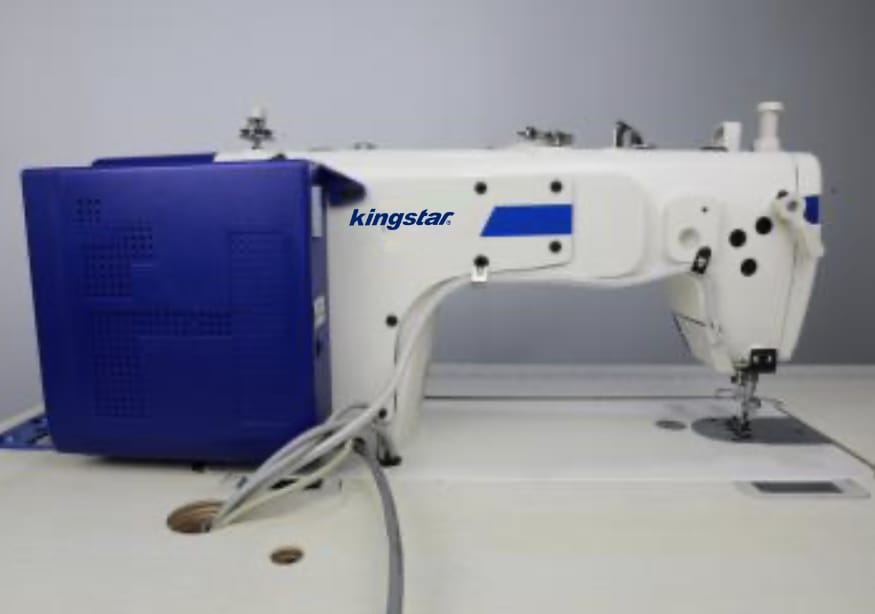

Back mounted control box

Back mounted box concept,do not take up space, easy to use.

TECH SPECS
Model Needle Size Usage Gauge Set Press foot HOOK Stitch length control Foot lifter Trimmer Speed Power Voltage frequency G.W/N.W Meas.
H6-4S1-C DB*1 11--18# Thin,Medium,Thick 5 5.5~13 M Horizontal Stepping motor Maganet Maganet 5000 550 220V 50/60 45/38 650*250*540
